Brand
- MFR #550-8
- Zoro #G0601596
- UPC #839137001365
- Country of OriginUnited States
- Category
Dimensions
| Internal Thread Size | 1/2″-13 |
| Overall Length | 1 mm |
| Insert Diameter | 16 mm |
| External Thread Size | M16-2.00 |
| Drill Bit Size | 14 mm |
| Minimum Installation Depth | 3/4 in |
| Tap Sizes | M16 x 2.0 |
Details

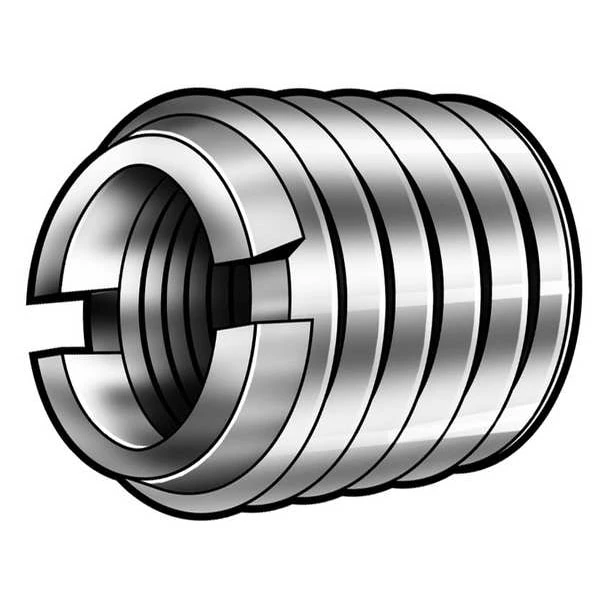

| Item | Self Locking Thread Insert |
| Material | Carbon Steel |
| Wall Type | Heavy Wall |
| Thread Type | UNC Internal/Metric External |
| Installation Method | Screwdriver, Bolt/Nut, or Power Drive Tool |
| Tensile Strength (PSI) | 78,300 psi |
| External Thread Class | 6G |
| Power Driver | 4ZE58 |
| Internal Thread Class | 2B |
| Brinell Hardness | 163 |
| Application | For Use on Metal |
| Finish | Black Phosphate |
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M16-2.00, Drill Bit Size 14 mm, External Thread Fit 2A, External Thread Size M16-2.00, Finish Black Phosphate, Insert Diameter 16 mm, Internal Thread Fit 2B, Internal Thread Size 1/2 In.-13, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 14 mm, Minimum Installation Depth 3/4 in, Overall Length 43/64 in, System of Measurement Inch/Metric, Thread Direction Right Hand
