Brand
- MFR #453-6
- Zoro #G2089412
- UPC #839137001174
- Country of OriginUnited States
- Category
Dimensions
| Internal Thread Size | M6-1.00 |
| Overall Length | 10.5 mm |
| Insert Diameter | 10.5 mm |
| External Thread Size | M10-1.50 |
| Drill Bit Size | 8.6 mm |
| Minimum Installation Depth | 12-19/64 mm |
| Tap Sizes | M10 x 1.5 |
Details

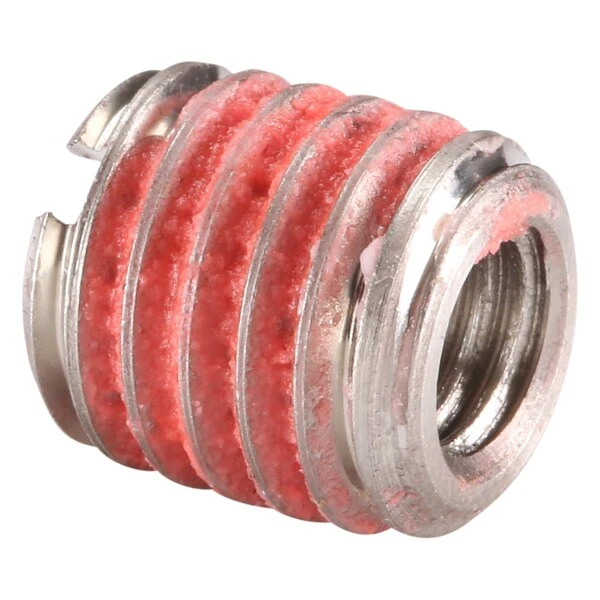

| Item | Self Locking Thread Insert |
| Material | 18-8 Stainless Steel |
| Wall Type | Heavy Wall |
| Thread Type | Metric Internal/Metric External |
| Installation Method | Screwdriver, Bolt/Nut, or Power Drive Tool |
| Tensile Strength (PSI) | 89,900 psi |
| Power Driver | 4ZE54 |
| Brinell Hardness | 160 |
| Internal Thread Class | 6H |
| External Thread Class | 6G |
| Application | For Use on Metal |
| Finish | Plain |
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M10-1.50, Drill Bit Size 8.60 mm, External Thread Fit 6G, External Thread Size M10-1.50, Finish Plain, Insert Diameter 10.5 mm, Internal Thread Fit 6H, Internal Thread Size M6-1.00, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 8.6 mm, Minimum Installation Depth 12 19/64 mm, Overall Length 10 mm, System of Measurement Metric, Thread Direction Right Hand, Thread Type Metric
