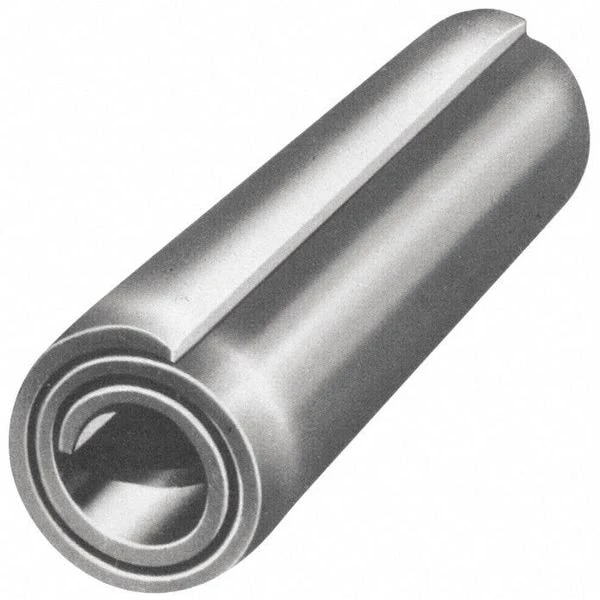

Spring Pin, Coiled, 1/2inx1-1/2in, 22500lb,

Original price was: $8.67.Current price is: $6.07.

Key Features

System of Measurement Inch
Spring Pin Type Coiled
Basic Material Stainless Steel
Material Grade 420
Outside Dia. 1/2 in

SKU: G2528605 Categories: Fasteners, Pins, Spring Pins

Top Quality Products
Efficiency meets excellence in customer care.
Effortless Shopping, Quality Products
Shop with Ease

Description
Reviews (0)

Brand
MFR #

U51430.050.0150
Zoro #

G2528605
Country of Origin

Multiple
Category

Dimensions

Outside Dia.	1/2 in
Fastener Length	1 1/2 in
Chamfer Diameter	0.488 in
Chamfer Length Reference	0.11 in
Fits Hole Dia. (Min.-Max.)	0.493-0.510 in
Overall Length	1-1/2″
Nominal Diameter	1/2 in
Actual Dia. (Min.-Max)	0.516-0.535 in
Usable Length	1 1/2 in
Fits Minimum Hole Diameter	1/2 in
Shank Length	1 1/2 in
Maximum Chamfer Length	0.11 in
Pin Diameter	1/2 in
Fits Maximum Hole Diameter	33/64 in
Outside Diameter Tolerance	+/-0.019 in
Shank Length Tolerance	+/-0.025 in

Details

Pin Item	Spring Pin
System of Measurement	Inch
Spring Pin Type	Coiled
Basic Material	Stainless Steel
Material Grade	420
Standards	ASME B18.8.2
Material	Stainless Steel
Double Shear Strength (Lbs.)	22,500 lb

Description

Spring Pin, System of Measurement Inch, Pin Diameter 1/2 in, Pin Type Coiled, Material Stainless Steel, Material Grade/Class 420, Finish Plain, Usable Length 1 1/2 in, End Type Chamfered, Chamfer Diameter 0.488 in, Fits Minimum Hole Diameter 1/2 in, Fits Maximum Hole Diameter 33/64 in, Shank Length 1 1/2 in, Maximum Chamfer Length 0.11 in, Nominal Diameter 1/2 in, Standards ASME B18.8.2, Shank Length Tolerance +/-0.025 in, Product Type Spring Pin, Outside Diameter Tolerance +/-0.019 in
